Cabinet Making for Beginners: Using Woodworking Tape for Perfect Alignment

Your first cabinet box looked perfect in your head. Then you clamped the sides together, and one panel slid a sixteenth of an inch out of place before the glue even set. Now you've got a visible seam on what was supposed to be a clean, flush corner.

Woodworking tape solves this exact problem. It's a double-sided adhesive strip that holds panels, face frames, and jigs precisely where you place them — with zero slipping, no clamp marks, and no wet glue squeezing out from under your fingers while you try to line things up.

Getting cabinet joints to sit flush matters for more than looks. A door that's a hair out of square will bind on its hinges, a drawer front glued crooked will never close evenly, and a misaligned face frame throws off every measurement that follows it. Small alignment errors compound fast in cabinet work — get the first joint right, and the rest of the box falls into place.

In this guide, you'll learn what woodworking tape is and how it works, exactly how to use it to align cabinet panels and face frames, a few pro techniques for tricky joints, and answers to the questions beginners ask most.

Why Cabinet Alignment Trips Up So Many Beginners

Cabinet boxes are unforgiving. Unlike a picture frame or a small craft project, a cabinet has to carry weight, open and close for years, and sit flush against a wall or its neighbor. Even a small misalignment at the assembly stage shows up later as a sticking drawer, a door that won't sit flat, or a visible gap at the seam.

Traditional clamps are part of the problem. They're great at applying pressure, but they don't hold a panel in position while you adjust it — and the moment you tighten one clamp, it can nudge the piece you just squared up. Wet wood glue makes this worse: it's slippery, it has open time you're racing against, and it needs sustained pressure while it cures. Beginners often end up wrestling three problems at once — position, pressure, and squeeze-out — with only two hands.

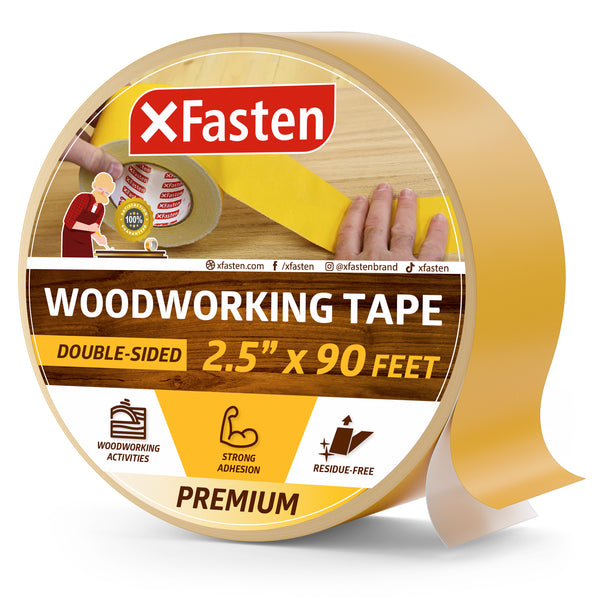

That's the gap woodworking tape was built to close. It's a strip of adhesive, coated on both sides, that grips two wood surfaces together instantly and holds them in exact position while you work. XFasten's Woodworking Tape, available in 2.5-inch and 3-inch widths by 30 yards, is built specifically for this kind of shop work — strong enough to hold a panel through drilling, routing, or clamping, and clean enough to remove without damaging your workpiece.

How to Use Woodworking Tape for Cabinet Panel Alignment

Here's a straightforward process for using tape to align your first cabinet box, face frame, or panel glue-up.

1. Dry-fit the joint first. Before any adhesive touches the wood, dry-fit your panels or face frame pieces and mark reference lines with a pencil where the edges should meet. This step catches sizing problems before they become permanent.
2. Clean both surfaces. Wipe away sawdust, sanding residue, and any finish or oil. Woodworking tape bonds best to a clean, dry surface — dust and debris are the most common reason a bond fails early.
3. Apply the tape to one panel. Run a strip of {2.5-inch or 3-inch} XFasten Woodworking Tape along the edge or face where the two pieces will meet, keeping it a small distance from any edge that will be cut, routed, or drilled.
4. Peel the liner and set the joint using your reference marks. Line up your pencil marks, then press the second panel down firmly, starting from one end and working across so you don't trap an air pocket or shift the alignment as you go.
5. Apply firm, even pressure across the full bond line. A few seconds of hand pressure — or a light pass with a J-roller if you have one — locks the tape's full adhesive strength in place.
6. Proceed with your permanent joint. With the panels held perfectly still, drill your pocket holes, drive your fasteners, or run your glue-up. The tape holds the alignment so you can focus on the joinery itself.
7. Remove cleanly when finished. Once the permanent joint is set, peel the tape back at a low angle rather than pulling straight up. This releases the bond without stressing the wood grain or leaving lifted fibers behind.

Because the tape holds position instantly, you get a second chance that wet glue never gives you: if a joint looks off before you commit to fasteners, you can lift the tape, re-set the panel, and try again.

Where Woodworking Tape Shines in Cabinet Building

Cabinet making involves more than one kind of joint, and tape earns its place in a few specific situations:

• Face frame alignment — Holding stiles and rails flush while you drill pocket holes, so the frame doesn't shift between drilling and fastening.
• Template and jig routing — Securing a template to a panel for repeatable cuts across multiple cabinet doors, without clamps getting in the router's way.
• Edge banding and veneer work — Tacking veneer or edge banding in place before final pressing, so it doesn't creep out of position.
• Dry-clamping wide panels — Holding glued-up panels flat and aligned while the glue cures, especially on box sides too wide for a single clamp to reach across.
• Drawer front and door positioning — Temporarily fixing a drawer front to its box during hardware layout, so you can mark and drill hinge or pull locations without the front sliding.

Once you've used tape for one of these, the temptation is to reach for a clamp less and the tape roll more — for good reason. It's worth keeping both the 2.5-inch and 3-inch widths on hand: the narrower roll suits face frames and edge work, while the 3-inch width covers wider panel glue-ups in fewer passes.

Pro Tips for Getting Cleaner Cabinet Joints

A few habits separate a shaky first cabinet from a tight, professional-looking one:

• Mark before you tape. Pencil reference lines on both pieces before applying any tape. Position them once, correctly, rather than eyeballing the fit while you're also fighting an adhesive bond.
• Work in short tape sections on long panels. Instead of running one long strip across an 18-inch panel edge, apply it in 4–6-inch sections. This gives you more control if you need to lift and reposition part of the joint.
• Warm the tape slightly in a cold shop. Adhesive tapes bond best above roughly 50°F. If your workshop runs cold in the early morning or winter months, let the tape and the wood come up to room temperature before applying it for a stronger initial grip.
• Test scrap first with unfamiliar wood. Oily hardwoods like teak or heavily finished surfaces can affect adhesion. A quick test strip on an offcut tells you what to expect before you commit to your actual cabinet piece.

According to XFasten's own site data, "woodworking tape" ranks among the top branded search terms shoppers use to find the site — a strong signal that dedicated hobbyist woodworkers are actively searching for this exact solution, not stumbling onto it by accident.

Build Your Next Cabinet with Confidence

Perfect cabinet alignment isn't about steadier hands or years of experience — it's about using the right tool to hold your work exactly where you put it. Mark your lines, tape your joint, and let the adhesive do the holding while you focus on drilling, routing, and fastening.

Once you've felt how much smoother a glue-up goes when your panels aren't shifting on you, the next step is simple: keep a roll of XFasten Woodworking Tape in both the 2.5-inch and 3-inch widths on your shop bench. Between face frames, edge banding, and panel glue-ups, you'll reach for it on nearly every build.
